OEM Diamond Tuck Point Blade for Concrete Floor Heating Systems Supplier, Exporters
Product Description

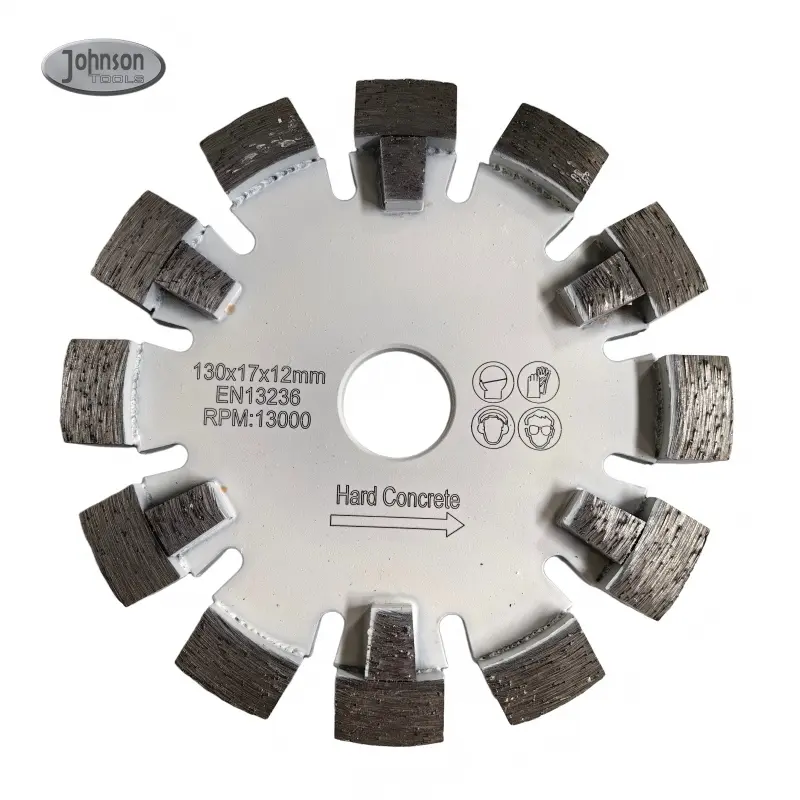

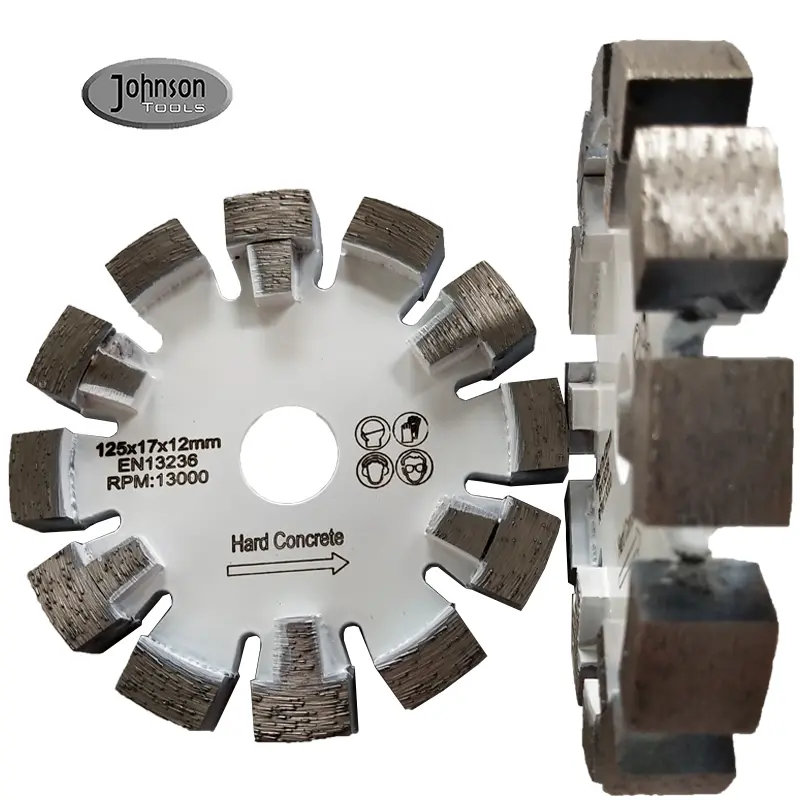

Product Introduction
Experience the ultimate synergy of safety and efficiency with our premium tuck point diamond blades. Engineered for the most demanding masonry restoration and floor heating projects, each blade features high-grade industrial diamond segments meticulously laser-welded to a heavy-duty 30CrMo steel core. This advanced metallurgical bond ensures the segments remain securely attached even under extreme heat and high-speed operation, making it the most reliable pointing grinder blade for professionals.
Whether working on a large-scale construction site or a precise floor milling project, this tuck point saw component delivers consistent performance. We utilize a proprietary blend of high-quality metal powders and superior diamond concentrations to ensure that every cut is fast and every blade is built to last.
Key Features
Our segments are fused through a state-of-the-art laser welding process that creates an unbreakable bond between diamonds and the core, offering superior stability and safety for our 4 1 2 in diamond tuck point blade compared to high-frequency welded alternatives.
Formulated with premium industrial diamonds embedded in a resilient metal matrix. This dense diamond concentration allows the pointing grinder blade to bite into hard concrete, mortar, and asphalt with ease while retaining constant sharpness.

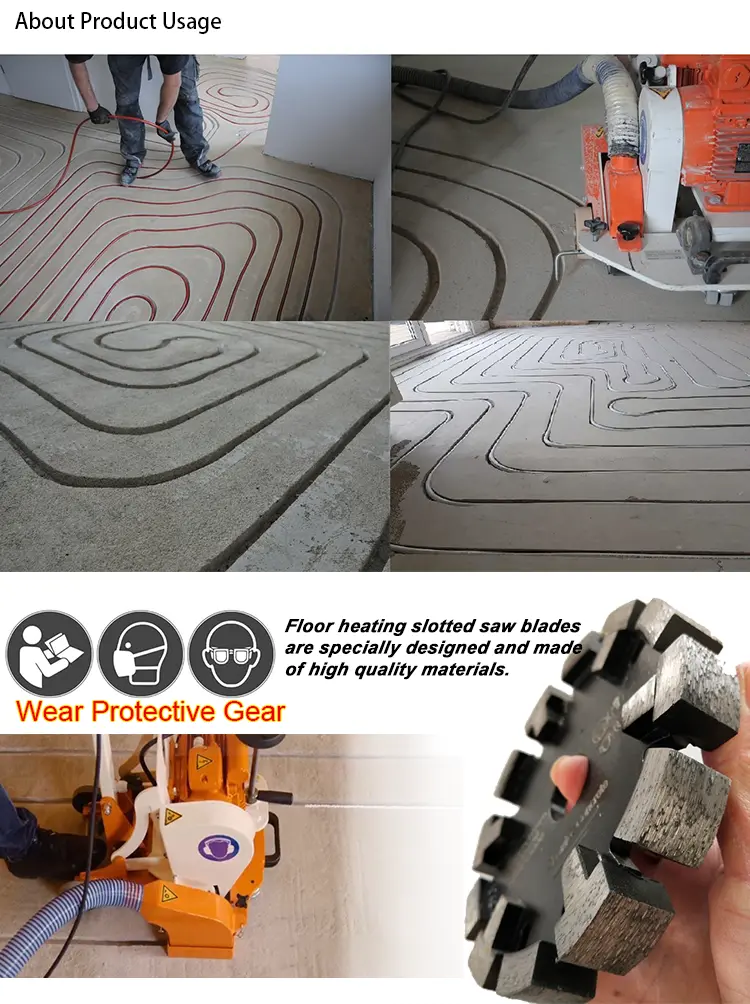

Equipped with a reinforced anti-warping core, this heavy-duty tuck point saw accessory is the prime choice for milling clean, uniform grooves in underfloor heating systems for swift and reliable pipe installations.
Manufactured in various standard and custom sizes, from the 4 1 2 in diamond tuck point blade to larger configurations. These tools integrate smoothly across handheld grinders and industrial slotting machinery.
Ultra-pure metal powders encourage an optimal self-sharpening mechanism. Labor duration is significantly reduced while maintaining an extremely low wear rate on abrasive screed and tough concrete.
Technical Specifications
-
Welding Process: Precision Laser Welding (Segment Loss Prevention)
-
Core Material: Premium 30CrMo Alloy Steel
-
Segment Type: Professional Tuck Pointing / U-Groove Hybrid
-
Compatibility: Handheld Angle Grinders & Floor Slotting Machines
-
Main Application: Hard Concrete, Mastic Asphalt, and Mortar Joint Restoration

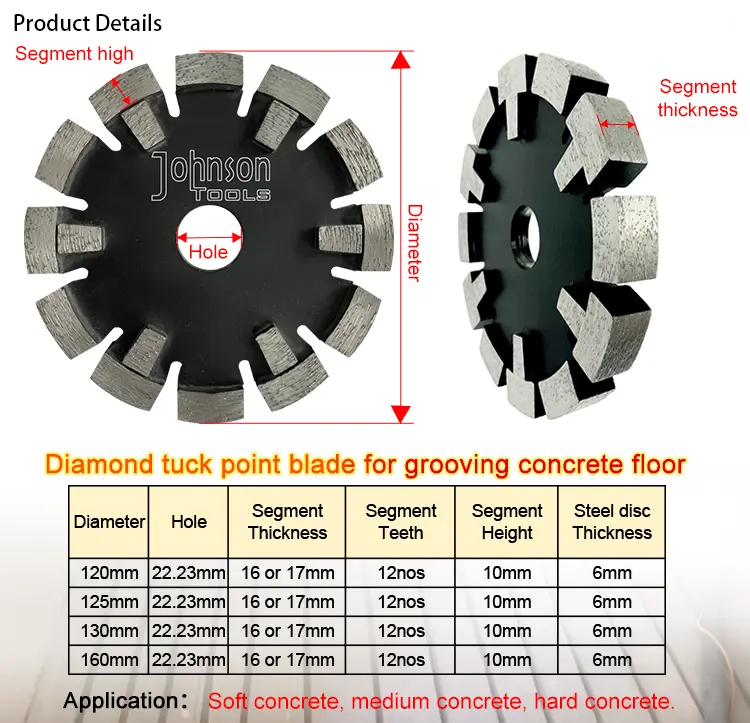

Product Parameters
| Diameter | Seg Thickness | Seg Height | Hole | Steel Disc Thickness | Seg Teeth |
|---|---|---|---|---|---|
| 120mm | 15/16/17mm | 10mm | 22.23mm | 6mm | 12nos |
| 125mm | 15/16/17mm | 10mm | 22.23mm | 6mm | 12nos |
| 130mm | 15/16/17mm | 10mm | 22.23mm | 6mm | 12nos |
| 160mm | 15/16/17mm | 10mm | 22.23mm | 6mm | 12nos |
Frequently Asked Questions
This blade is engineered for cutting channels in hard concrete, screed, and mastic asphalt, making it optimal for mortar joint restoration and grooving underfloor heating panels.
Laser welding fuses the diamond segments directly into the steel core, completely eliminating the risk of segment loss caused by high operational temperatures.
Featuring a standard 22.23mm center bore, it is fully compatible with professional angle grinders, specialized tuck pointers, and floor slotting systems.
Yes, the 30CrMo reinforced steel core and laser-welded bonding allow the blade to withstand high friction and thermal stress during dry-cutting operations.
Our standard segment thickness options are 15mm, 16mm, and 17mm, providing the exact widths required for standard floor heating pipe layouts.
