China 24" Long Lifespan Diamond Saw Blade for Prestress Concrete Cutting Supplier, Exporter
Product Description
Product Introduction

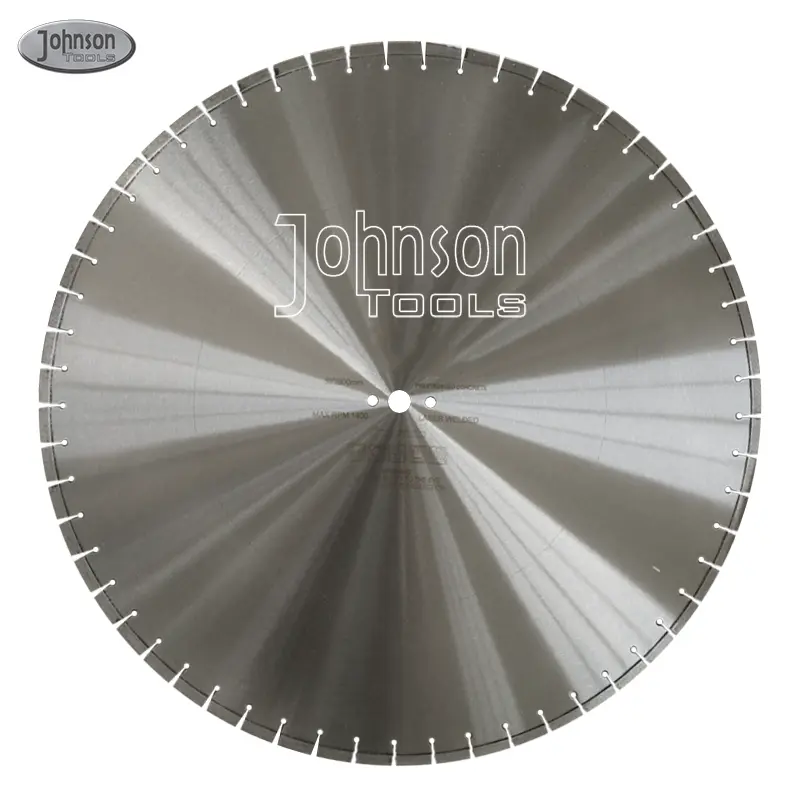

This 24" diamond saw blade is specifically designed for cutting high-strength prestressed concrete slabs, hollow-core panels, and precast concrete embedded with high-tensile steel strands.
Standard large-diameter discs often suffer from matrix distortion and wobbling due to frictional heat during continuous factory cutting. As a dedicated prestress concrete saw blade, this product utilizes a professionally rolled and tensioned steel core. This industrial tensioning process pre-compensates for thermal expansion, delivering a straight cut path, minimal vibration, and a long lifespan diamond saw blade 24 inch performance under high-rpm production lines.
Features
High-speed cutting generates extreme heat that causes ordinary discs to warp. Our heavy duty 24 inch concrete cutting disc features a professionally tensioned matrix that pre-compensates for thermal expansion. It eliminates wobble and vibrations entirely, ensuring 100% straight and true cuts from start to finish.

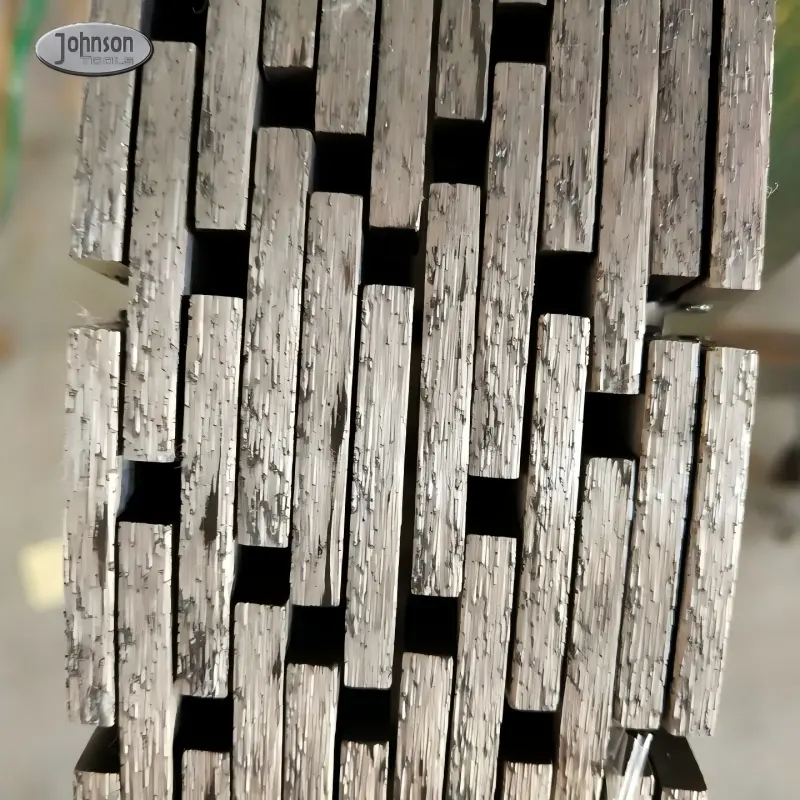

We source only top-grade, high-concentration diamond crystals. Combined with our proprietary bond matrix, this long lifespan diamond saw blade 24 inch ensures that the segments wear uniformly, preventing glazing and completely eliminating the risk of segment dropping during heavy-duty operations.
As a dedicated prestress concrete saw blade, this tool cuts smoothly through both the hard aggregate and the embedded high-tension steel wires simultaneously. It prevents machine overloading and significantly reduces operator downtime.

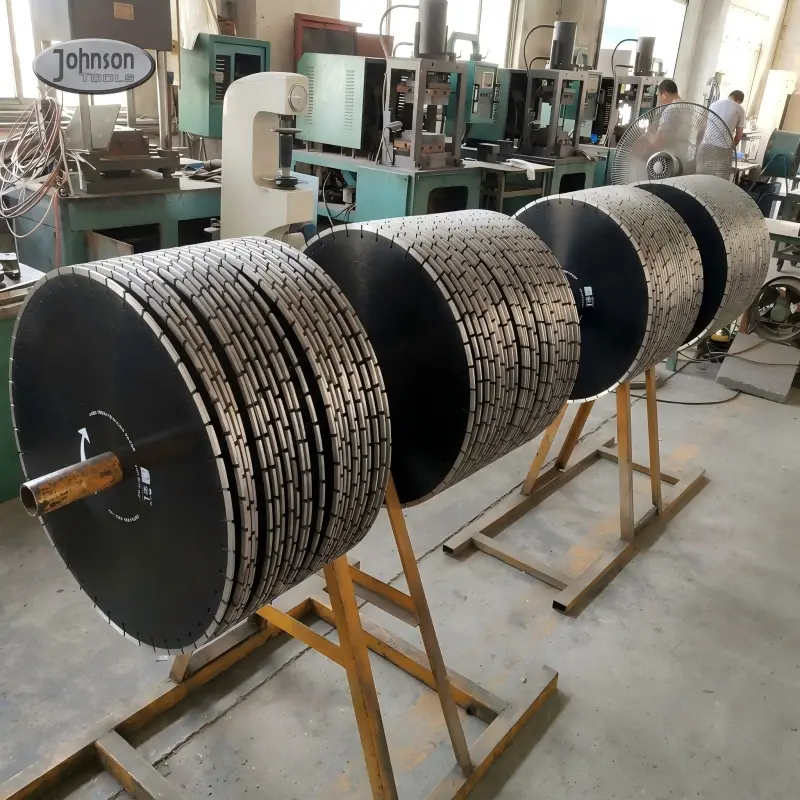

Every single 600mm diamond saw blade undergoes rigorous dynamic balancing and tension testing before leaving our facility, promising consistent, trouble-free performance for global distributors and large-scale precast factories.
Parameters
| Inch | Diameter (mm) | Teeth Length (mm) | Teeth Thickness (mm) | Teeth Height (mm) | Teeth Number |
|---|---|---|---|---|---|
| 24" | 600 | 40 | 5.0 | 12/15 | 42 |
| 28" | 700 | 40 | 6.5 | 12/15 | 50 |
| 32" | 800 | 40 | 6.5 | 12/15 | 57 |
| 36" | 900 | 40 | 6.5 | 12/15 | 64 |
| 40" | 1000 | 40 | 7.0 | 12/15 | 70 |
| 44" | 1100 | 40 | 7.5 | 12/15 | 74 |
| 48" | 1200 | 40 | 8.0 | 12/15 | 80 |
| 52" | 1300 | 40 | 8.0 | 12/15 | 88 |
| 56" | 1400 | 40 | 9.0 | 12/15 | 95 |
| 60" | 1500 | 40 | 9.0 | 12/15 | 100 |
