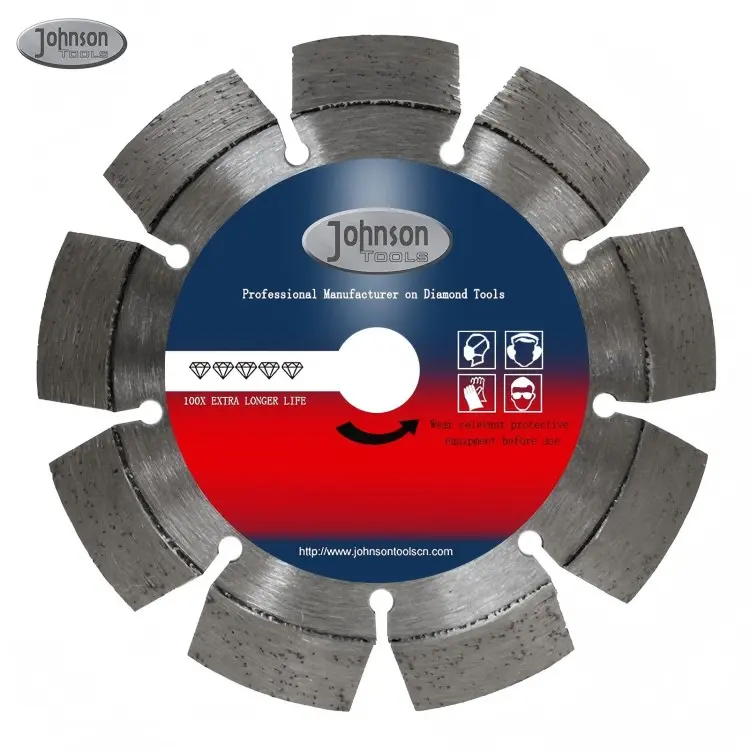

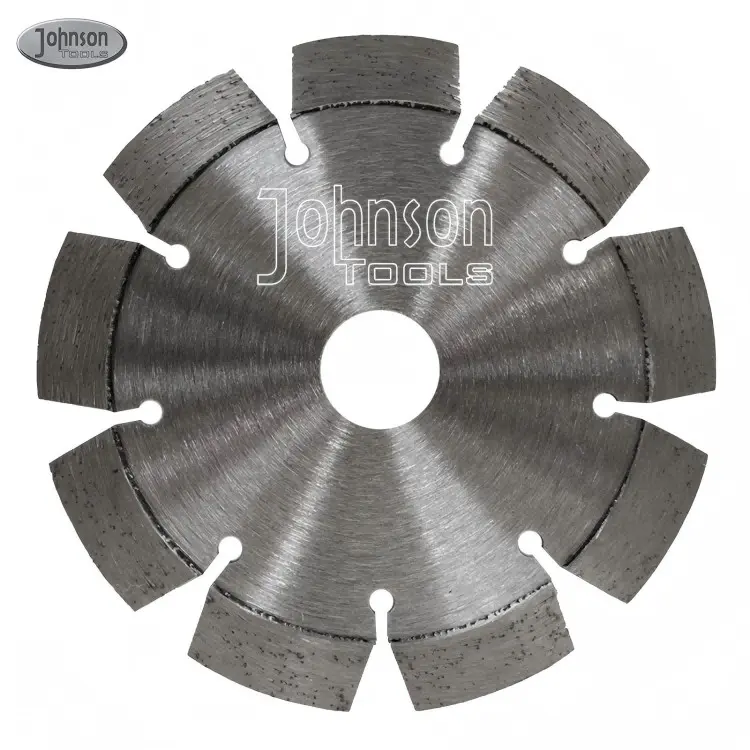

China 105mm - 230mm General Purpose Laser Welded Diamond Saw Blade for Concrete & Stone Exporter, Factory
Product Description
Product Introduction
Professional-Grade Universal Diamond Blade is the definitive solution for contractors requiring high-speed efficiency without compromising on safety. At the core of this blade is a commitment to structural integrity. By utilizing 100% fully automatic laser-welding technology, we achieve a segment-to-core bond that is virtually unbreakable. This advanced manufacturing process results in a welding strength that consistently exceeds MPA safety standards by 10-20%, providing an essential safety margin during high-stress industrial applications.

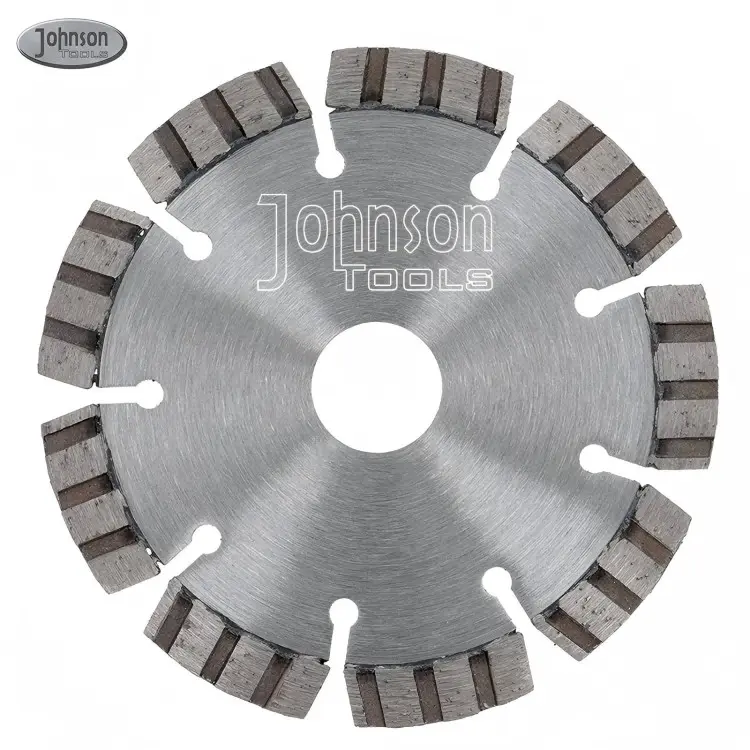

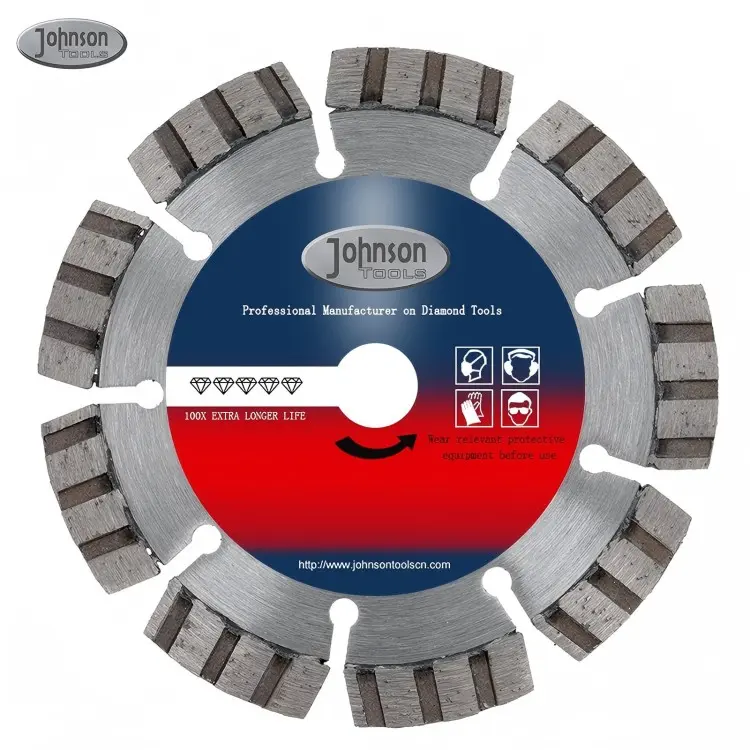

Equipped with high-concentration industrial diamonds and an innovative turbo-type segment design, this blade is optimized for rapid material removal. The turbo configuration reduces friction and facilitates faster cooling, allowing for exceptional cutting speeds while significantly reducing mechanical wear. To further protect your investment, the blade features specialized deep-tooth undercut protection. These wear-resistant segments shield the steel core from erosion when cutting abrasive materials, ensuring a significantly longer service life and a lower cost-per-cut compared to standard sintered blades.
Designed for the modern job site, this blade eliminates the need for frequent tool changes. Its specialized bond matrix is engineered for high-performance all-weather cutting across a diverse range of substrates. Whether tackling heavy-duty reinforced concrete, masonry, brick, or abrasive asphalt, this blade maintains its precision. It performs with equal efficiency in both wet and dry environments, offering the flexibility needed for handheld high-speed saws, masonry table saws, and low-horsepower walk-behind cutters.
Whether for road construction, demolition, or stone fabrication, our Universal Diamond Blade delivers the "Safety-First" performance and extended operational life that professional operators demand.
Features
01

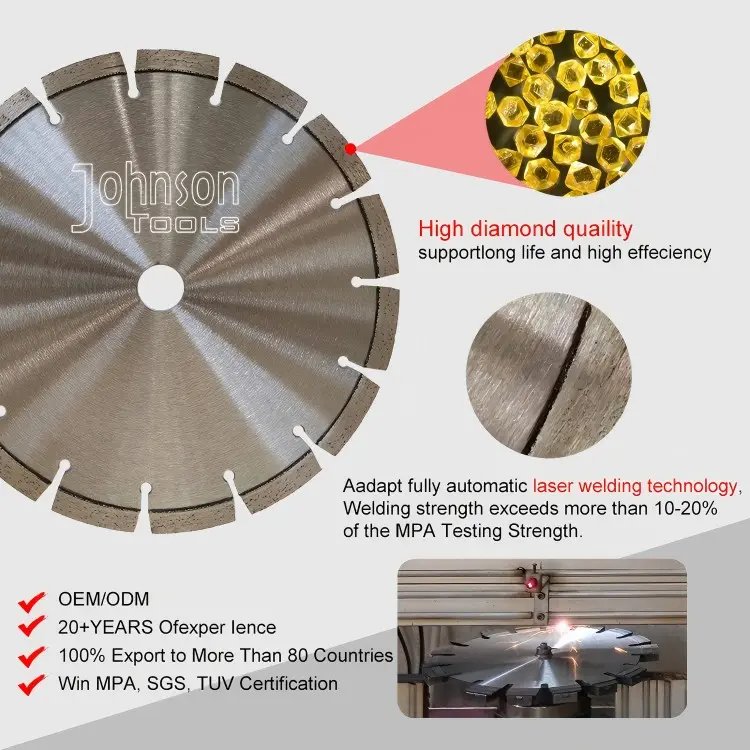

Integrated 100% Automated Laser-Welding
Utilizing advanced fully automatic laser-welded construction, these blades offer maximum segment-to-core bonding strength, ensuring total safety and durability during high-stress industrial applications.
02
Multi-Material Versatility (Wet & Dry)
Optimized for high-performance all-weather cutting, this blade tackles a diverse range of substrates including reinforced concrete, granite, asphalt, and masonry with equal precision in both wet and dry environments.
03
Deep-Tooth Undercut Protection
Engineered with specialized wear-resistant undercut segments, our design prevents steel core erosion when cutting abrasive materials, significantly extending the overall service life compared to standard blades.
04
Universal Power-Tool Compatibility
Designed for seamless operation across various equipment platforms, including high-speed handheld saws, professional masonry table saws, and low-horsepower walk-behind pavement cutters.

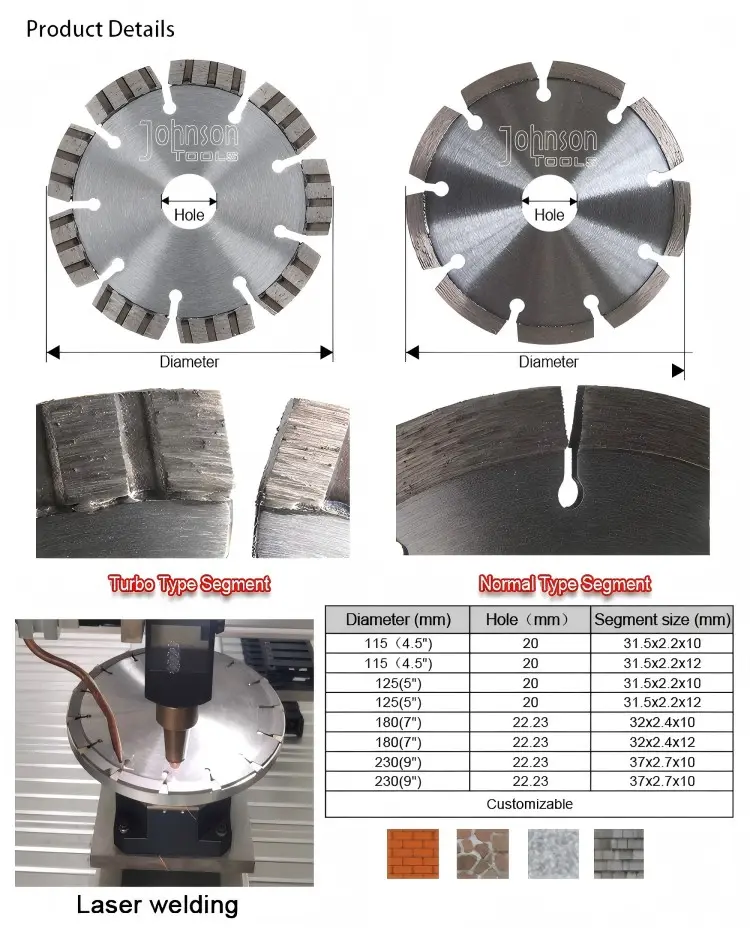

Parameters
| Diameter | Segment Thickness | Segment Number | Center Hole | RPM |
|---|---|---|---|---|
| 4" / 105mm | 2.2mm | 8 | 20mm | 14,600 |
| 4.5" / 115mm | 2.2mm | 8 | 20mm | 13,300 |
| 5" / 125mm | 2.2mm | 9 | 20mm | 12,000 |
| 7" / 180mm | 2.4mm | 14 | 22.23mm | 8,500 |
| 9" / 230mm | 2.6mm | 16 | 22.23mm | 6,600 |
Customer Review
Frequently Asked Questions
What materials can this universal diamond blade cut?
The blade is optimized for multi-material cutting, efficiently tackling reinforced concrete, masonry, granite, brick, and abrasive asphalt.
Can this blade be used for both wet and dry cutting?
Yes, its specialized bond matrix and cooling turbo segment design allow it to perform with high efficiency in both wet and dry conditions.
How does the 100% automated laser-welding benefit performance?
Laser welding provides superior joint strength that exceeds MPA safety standards by 10-20%, effectively preventing segment loss under heavy industrial stress.
What is the advantage of deep-tooth undercut protection?
The deep-tooth segments protect the core steel from abrasive wear and undercut erosion, significantly extending blade lifespan and lowering your overall cost-per-cut.
What types of machinery are compatible with these blades?
These blades fit high-speed handheld cut-off saws, professional masonry table saws, and low-horsepower walk-behind saws across standard arbor sizes.
How do I choose the correct blade size and RPM?
Select the blade diameter based on your machine specifications; always ensure your tool does not exceed the maximum RPM rating listed in our parameter table.
