China 10 Inch Diamond Concrete Grooving Saw Blades for Road Pavement Cutting Exporters, Factory
Product Description
Product Introduction

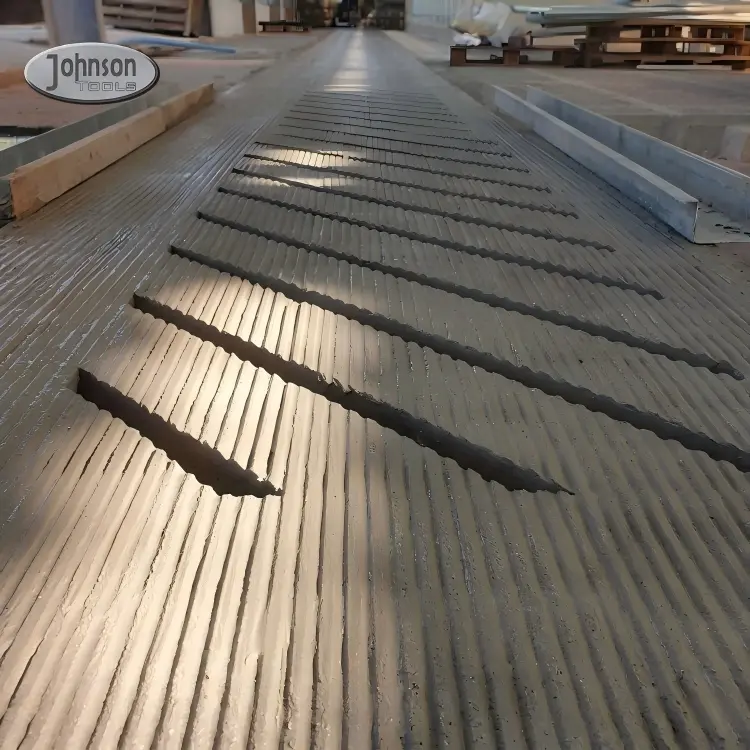

Our premium 10-inch Pavement Grooving Diamond Saw Blades are engineered for the absolute toughest surface preparation tasks. Specifically designed for high-performance concrete cutting disc applications, these blades excel at creating precision anti-slip grooves on dairy farm walkways, airport aprons, and bridge decks. Whether performing bump cutting, floor leveling, or expansion joint reconstruction, this versatile concrete blade for circular saw equipment ensures clean, consistent results across concrete, asphalt, and stone.

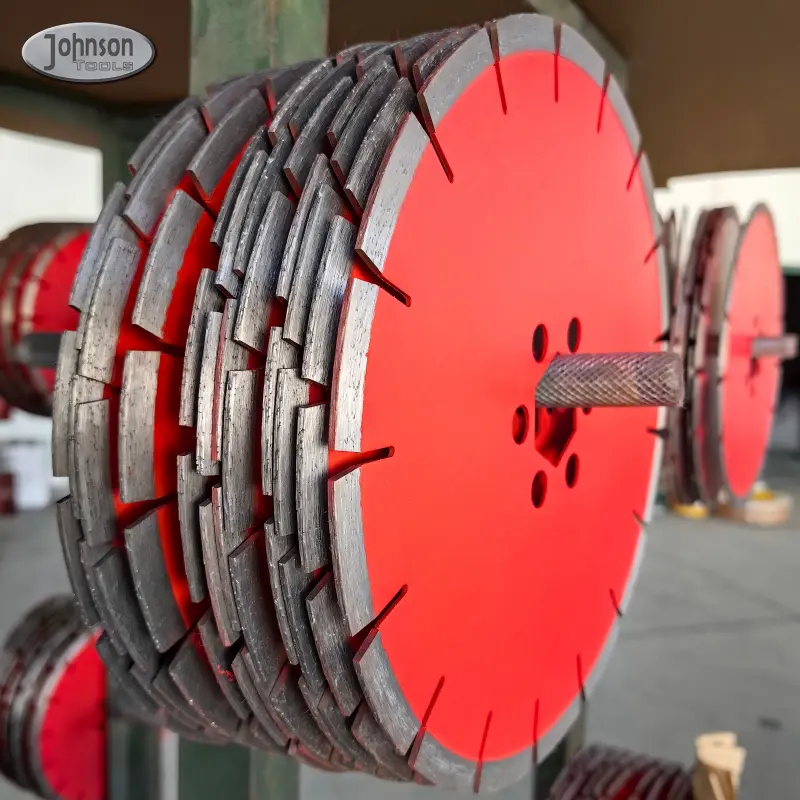

Built for professional-grade durability, each diamond saw blades unit features 10mm high segments secured by state-of-the-art laser welding technology. This ensures maximum safety and an extended lifespan during intense dry or wet cutting operations, effectively preventing segment loss even when removing heavy coatings, epoxies, or road markings. The specialized design allows for a customizable cutting depth of up to 1-1.5cm, with fully adjustable spacing (1.5mm to 20mm) via interchangeable spacers to meet specific anti-slip or grinding requirements.

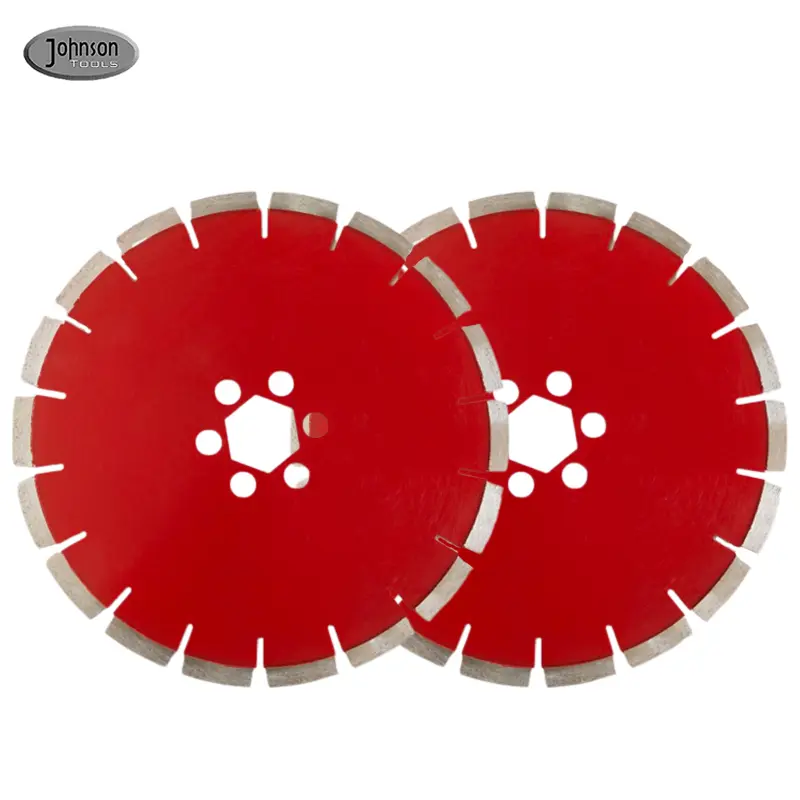

To optimize performance for your specific project, we offer a color-coded bond system: Red for hard concrete, Blue for soft abrasive surfaces, and Green for universal applications. Featuring a precision-engineered OD42 Hexagon arbor, this concrete cutting disc provides a vibration-free fit for industry-leading machinery like Blastrac and Contec. From road surface renovation to enhancing safety on slippery agricultural floors, our Pavement Grooving Diamond Saw Blades deliver the speed, stability, and reliability required by professional contractors worldwide.
Features
-
⚙️Precision Pavement Grooving & LevelingSpecifically optimized as a Pavement Grooving Diamond Saw Blades solution, it excels in airport apron construction, bridge deck grooving, and floor leveling. Achieve a consistent cutting depth of 1-1.5cm for perfect anti-slip surfaces and road renovation.
-
🎨Color-Coded Bond SystemTailor your performance with our hardness-matching system:
- Red Bond: Optimized for grinding extra-hard concrete floors.

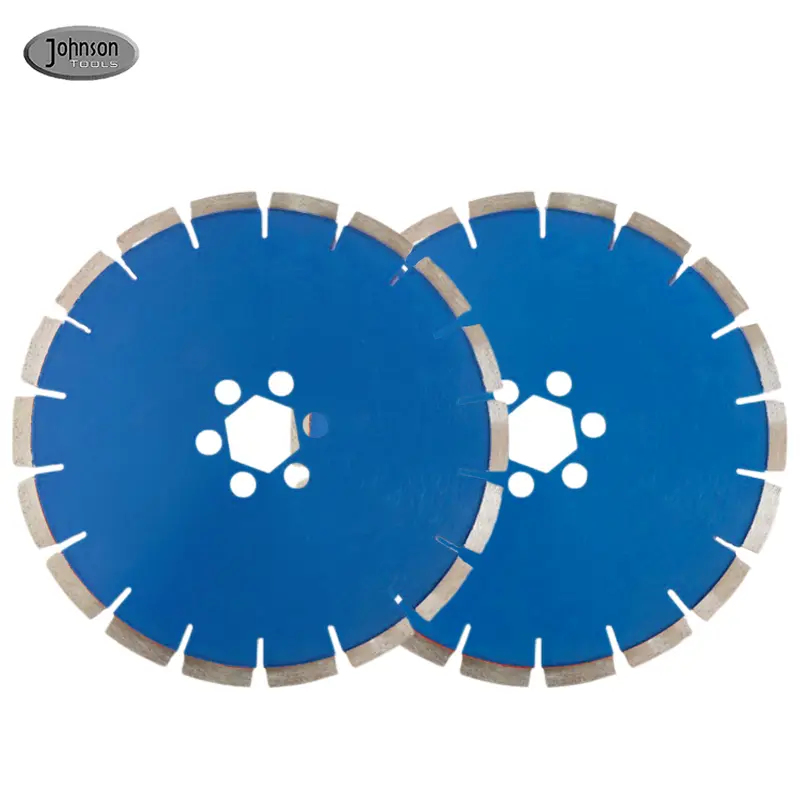

- Blue Bond: Designed for soft and abrasive concrete substrates.
- Green Bond: The universal choice for standard concrete cutting applications.
-
📐Fully Customizable Groove GeometryDesigned for versatility, the spacing between blades can be adjusted from 1.5mm to 20mm using spacers. This allows this concrete cutting disc to switch seamlessly between fine surface grinding and wide anti-slip safety grooving.
-
🛡️Superior Material VersatilityThis high-performance concrete blade for circular saw and floor grinders efficiently removes tough materials including reinforced concrete, asphalt, epoxy coatings, glue residues, and thermoplastic road markings.
-
💧Enhanced Heat DissipationWhile fully capable of dry cutting, the blade’s core design supports wet cutting to effectively cool the segments, wash away slurry, and significantly prolong the service life during intensive roadwork projects.

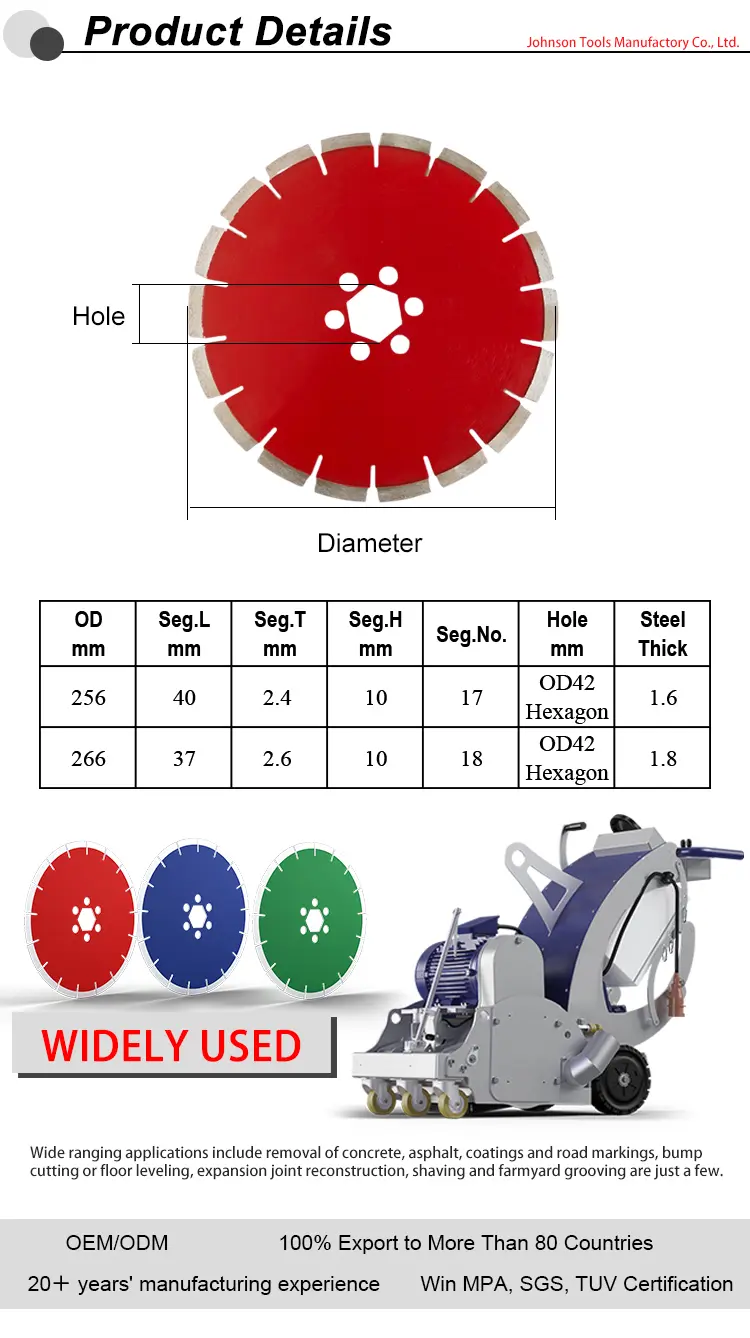

Parameters
| OD (mm) |
Seg. Thickness (mm) |
Seg. Height (mm) |
Segment Number | Hole (mm) |
|---|---|---|---|---|
| 256 | 2.4 | 10 | 17 | OD42 Hexagon |
| 266 | 2.6 | 10 | 18 | OD42 Hexagon |
Frequently Asked Questions
These diamond grooving blades are built with a precision OD42 Hexagon arbor hole, ensuring a vibration-free, direct fit on industry-standard grooving machines and floor grinders, such as Blastrac and Contec models.
The bond should be chosen based on the surface hardness: Red Bond is designed for extra-hard concrete floors, Blue Bond works best on soft and abrasive surfaces, and Green Bond serves as the general-purpose solution for standard concrete cutting.
The blades are engineered for both dry and wet cutting operations. Using wet cutting enhances heat dissipation, suppresses dust, flushes out slurry, and significantly prolongs the overall life of the diamond segments.
The cutting depth is adjustable up to 1-1.5cm via your machine's settings, while groove spacing can be customized between 1.5mm and 20mm by adding or removing interchangeable spacers between multiple stacked blades.
Each 10mm high segment is attached to the core using state-of-the-art laser welding technology. This provides superior bond strength, preventing segment breakage or detachment even under intense pressure from removing epoxy, adhesives, or thermoplastic markings.
