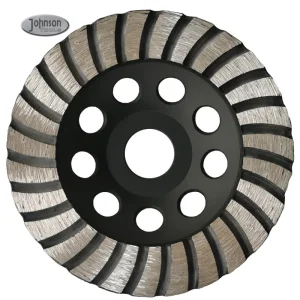

OEM 5" (125mm) Diamond Turbo Cup Grinding Wheel for Concrete, Stone Supplier, Manufacturers
View Specifications
OEM 4-1/2" Laser Welded Tuck Point Blade for Concrete Grooving Supplier, Factory
View SpecificationsEngineering Superiority in Multitool Scraper Blade Manufacturing
In-depth structural breakdown of oscillating scraper tooling: metallurgy, laser-welded bonding matrices, dynamic flexural fatigue, and modern demolition challenges.
Metallurgical Formulations (SK5, HCS & Bi-Metal)
Modern oscillating multitool (OMT) scraper blades operate under high-frequency vibration (11,000 to 22,000 OPM) at small angular amplitudes. We utilize premium SK5 high-carbon alloy steel and cold-rolled stainless compositions subjected to continuous atmosphere vacuum hardening. This gives our rigid scraper blades the yield strength needed to shear dried urethane, epoxy mortar, and elastomeric carpet adhesives without tip deformation, while flexible variants maintain high fatigue resistance without snap fractures.
Precision Universal Quick-Release Interfaces
Interchangeability governs jobsite productivity. Our OEM manufacturing line fabricates universal multi-fit arbors fully compatible with Starlock, standard OIS, quick-release hex systems, and specialized clamping profiles. Utilizing 400-ton hydraulic fine-blanking dies, arbor geometry achieves high torsional load retention without interface burring or fatigue micro-cracking across high-torque cordless industrial drive tools.
Wear Surface Coatings & Bevel Engineering
Frictional heat accumulation is the main factor in scraper delamination and premature dulling. Our blades feature laser-honed chamfer bevels optimized for progressive wedge entry. Combined with physical vapor deposition (PVD) TiN titanium coatings, non-stick Teflon finishes, or black oxide corrosion inhibitors, friction coefficients drop by over 42%, preventing melted adhesive build-up and improving tool runtime on high-density jobsites.
Why Tier-1 Importers Consolidate Tooling in China
From advanced metallurgical ecosystems in Jiangsu to automated laser heat treatments, see how our manufacturing supply chain provides reliable scale, strict compliance, and cost-per-cut value.
Integrated Raw Steel & Diamond Matrix Supply Chain
Situated within China's premier industrial tooling hub in Jiangsu (Nanjing and Suzhou), our production direct-sources cold-rolled specialty strip steel, virgin tungsten carbide powders, and synthetic industrial diamonds. Vertical integration from powder metallurgy mixing, automated pressing, laser segment welding to EDM grinding eliminates supply chain handoffs and keeps quality uniform.
SGS, TÜV & CE Certified Quality Control (QC)
Tool failure creates severe jobsite liability. Every batch of scraper blades and diamond cutting tools runs through automated hardness testers (Rockwell HRC), dynamic flex stress rigs, and weld-shear testing exceeding EN13236 safety standards. Private-label buyers receive batch-traceable inspection sheets, ensuring zero line disruptions across North American and European retail shelves.
Agile OEM/ODM Customization & Private Labeling
We provide comprehensive white-label solutions: high-resolution fiber laser marking, custom color-coded functional coatings (e.g., blue for metal, silver for adhesive), specialized clamshell blisters, drop-test certified retail boxes, and tamper-evident barcoded multi-packs. Stringent bilateral non-disclosure agreements (NDAs) protect your proprietary geometry.
Selection Guide: Tailoring Scrapers to Demolition Substrates
Matching blade flexibility, bevel geometry, and metallurgical tensile yield to specific jobsite surface prep and material removal conditions.
| Application Scenario | Recommended Blade Profile | Material Specification | Substrate Protection Technique | Lifecycle Optimization |
|---|---|---|---|---|
| Resilient Vinyl & Linoleum Floor Scraping | Rigid Ground-Edge Offset Scraper (52mm) | High Carbon SK5 (HRC 52-54) | Maintain 15° shallow angle of attack to shave adhesive without gouging plywood or subfloor screed. | Re-hone secondary edge using aluminum oxide dressing stick; avoid excessive plunge pressure. |
| Silicone, Caulking & Soft Adhesive Removal | Flexible Polished Chamfer Scraper Blade | Spring Stainless Steel 301 | High elastic modulus allows blade to flex flat against delicate ceramic tile, glass, and bathtub surrounds. | Operate tool at medium speed (setting 3-4) to eliminate frictional gumming and melting. |
| Dried Tile Mortar, Grout & Cement Splatter | Carbide Grit / Diamond Brazed Oscillating Blade | Laser-Welded Carbide / Diamond | Grinding micro-impact shears thin-set mortar beds cleanly along masonry edges without vibration cracking. | Use vacuum extraction port to draw silica dust away from the oscillating contact zone. |
| Industrial Epoxy, Polyurea & Hard Mastics | Ultra-Rigid Stepped Bevel Heavy Scraper | Bi-Metal M42 Strip Core | Reinforced stepped spine eliminates flex; channels peak kinetic torque into shearing hardened coatings. | Short push bursts at maximum OPM; prevent prolonged continuous stall against steel anchors. |
Global Industry Trends & Supply Chain Resilience
How automation, cordless high-torque tools, and changing international trade policies are shaping professional accessory procurement.
Optimization for High-Output Brushless Oscillators
The transition from corded multi-tools to 18V/20V brushless battery platforms with extended oscillating arcs (up to 3.6° - 4.2°) requires increased blade tang stiffness. Our engineering team has strengthened the arbor shoulder area by 28%, eliminating the fatigue fractures common in legacy stamping designs when used with modern brushless power heads.
Automated Laser Edge Hardening & Robot De-burring
By replacing manual batch grinding with robotic CNC multi-axis grinding cells and induction-controlled edge hardening, our Nanjing plant maintains tooth and edge accuracy within ±0.02 mm across million-unit production runs. This delivers uniform cutting and scraping performance that brand managers can trust across all distributed inventory.
Eco-Packaging & Global Trade Compliance
Global supply chains require full environmental and regulatory compliance. We support international brand owners with plastic-free, 100% recyclable FSC kraft packaging, RoHS/REACH chemical compliance certification, and clear HS export categorization for hassle-free customs clearance across North America, the EU, Australasia, and Southeast Asia.
Frequently Asked Questions for B2B Importers
Essential details covering factory operations, OEM configurations, minimum order thresholds, and logistical protocols.
What is the main difference between rigid and flexible scraper blades?
Rigid scraper blades are made from thicker high-carbon SK5 steel (approx. 1.0mm-1.2mm) designed for heavy push scraping on hard adhesives, dried mortar, vinyl tile, and carpet backing. Flexible scrapers use thinner spring steel (0.6mm-0.8mm) that bends along contours to remove soft silicone, caulking, and paint without scratching surfaces like acrylic, tile, or finished wood.
Are your scraper and oscillating multi-tool blades fully universal?
Yes. Our tooling interfaces are engineered to match universal quick-release systems, fitting over 95% of oscillating multi-tools worldwide (including Bosch, Fein Multimaster, Makita, Milwaukee, DeWalt, Ridgid, and Ryobi). We also manufacture dedicated Starlock-compatible interfaces and provide adapters where needed.
What is the typical OEM/ODM production lead time and MOQ?
For standard universal configurations, our baseline MOQ starts at 500 to 1,000 units per SKU. Custom-branded OEM orders (including custom laser etching, specialized color coatings, and branded blister packs) typically run on a 25-35 day manufacturing cycle, with airfreight sample turnarounds in 5-7 working days.
How do you guarantee quality consistency across large orders?
Every production run follows ISO9001-certified processes. Incoming strip steel undergoes metallurgical hardness and tensile checks, followed by automated CNC blanking and laser-controlled edge inspection. Before packing, random batch samples undergo dynamic oscillation fatigue testing up to 20,000 OPM until failure to verify weld and core integrity.
Can you provide custom blade geometries for specialized industries?
Yes. Our in-house tooling division develops tailored tooling dies, custom-angled offsets, mushroom-profile sealant cutters, serrated scrapers, and hybrid carbide-edged scraper tools. We can work directly from your CAD files (.STEP, .DWG) or reverse-engineer physical jobsite samples under NDA.
What international payment and delivery terms do you support?
We work with global trade terms including FOB (Shanghai/Ningbo), CIF, CFR, DDP, and EXW. Payment terms include T/T, L/C at sight, and tailored revolving credit arrangements for established distribution partners, supported by full customs documentation and test certificates.
